- ucfb204 12 high accuracy insert
Brand Name: BSIDE
Model Number: CCT01
With Backlight Or Not: YES
Display: 128 x 128 LCD display
measure mode: Single/continuous
group mode: Direct ( DIR )/general ( GEN )
Statistics display: Mean/minimum/maximum/standard deviation
probe mode: Auto/magnetic/eddy current
Power off automatically: Yes
USB interface: Yes
Low battery and error indication: Yes

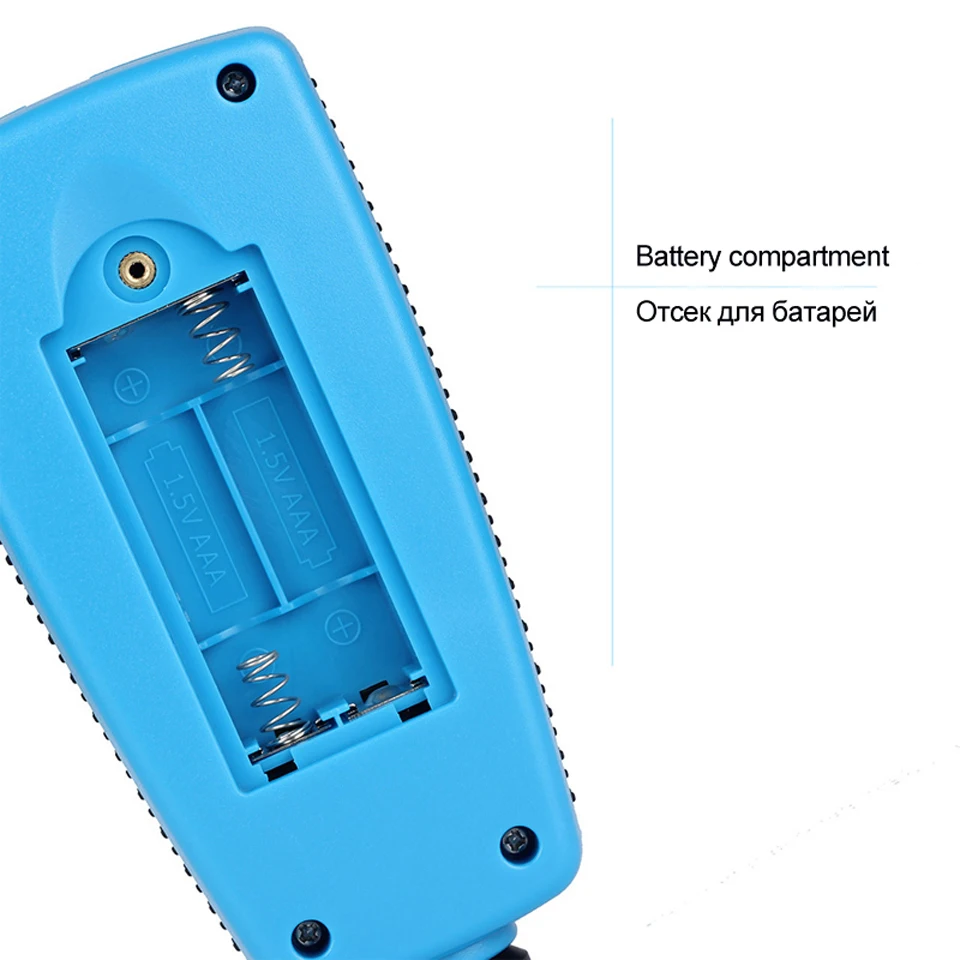

Power supply: Two 1.5V AAA battery
128 x 128 LCD display, standard menu operations.
Two measure modes: single and continuous.
Three probe modes: auto, magnetic and eddy current.
Measuring principle: Magnetic induction (F-probe) and eddy current (N-probe).
Measuring Range: 0~2000μm(0 to 78.769mil)
Accuracy: (F-probe:3%+1μm), (N-probe:3%+1.5μm)
Resolution: 0~99.9 (0.1μm); 100~999 (1μm); ＞1000μm (0.01mm).
Two group modes: direct (DIR) and general (GEN), readings will be lost when power off in direct mode, and not be lost in general mode.
Zero point calibration and multi-point calibration (up to 4 points) for each group.
The users can recall, delete specified readings, or delete group readings.
Statistics display: mean, minimum, maximum and standard deviation.
User can set high or low limit alarm for each group.
Support for English/German Or Russian.
With USB interface for data transmission.
Has Auto Power off, Low battery and error indication function.
The outstanding advantages of this product: CCT01 coating thickness gauge has excellent compatibility and can test most cars. Can meet your different needs !
From 0 to 2000um (0 to 78.769mils); Units: um, mm and mils; Minimum thickness of substrate: F-probe: 0.5mm (0.02"), N-probe: 0.3mm (0.012"); Statistics: No. of readings, mean, minimum, maximum and standard deviation.
Can measure the thickness of Non-magnetic coating layers On magnetic substrate. Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel).
Can measure the thickness of nonconductive coating layers covered on nonferrous substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on nonferrous substrate (aluminum, brass, zinc, tin and nonmagnetic stainless steel).
[Easy to Use]:
User does all operations via standard menu so easily; Power off automatically; USB interface to data transmission; Low battery and error indication; User can set high or low limit alarm for each group. Support for English and German.
Ideal for manufacturing company, shipbuilding, aircraft industries, metal machinery industry, chemical industry, especially in automobile/car trading.
1 x CCT01 Thickness Gauge
1 x Fe Substrate
1 x Al Substrate
1 x USB Cable
1 x Software CD
5 x Calibration Card
1 x Technical manua
